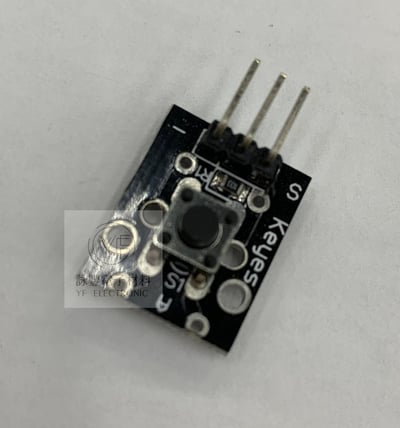

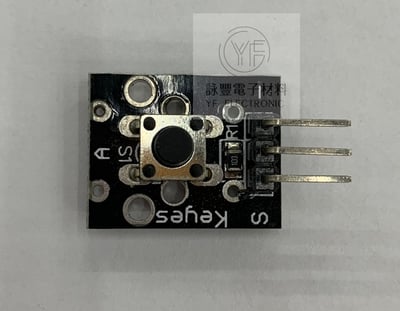

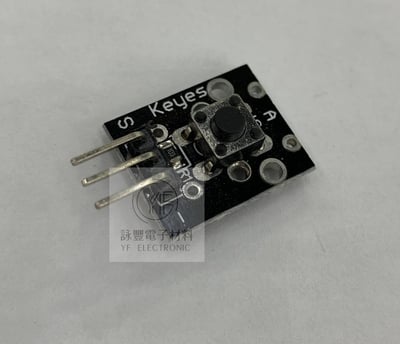

開關按壓 Ktduino傳感器

四腳直插輕觸開關

基本參數 :
1.額定範圍Rating: 50mA 12VDC
2.接觸電阻Contact Resistance : 50mΩ max(initial)
3.絕緣電阻Insulation Resistance: 100MΩ（minDC 250V）
4.耐壓強度Dielectric Strength : AC250V(50/60Hz for 1minute)
5.機械壽命Electrically Life:100,000cycles
6.環境溫度Environment temperature: -25℃～+105℃
7.操作力度Operating Force: 180/230(±20gf)
8.熱變形溫度Seal temperature:250℃-280℃

#開關按壓 #Ktduino傳感器
